Straddle spray units range
COMPACT SPEEDAIR and SUPAIR
The COMPACT SPEEDAIR and SUPAIR unit has been designed to adapt to any straddle, single-row and three-row tractor. Users can come up with their own personalised treatment tool while benefiting from BERTHOUD know-how. Three types of booms can be fitted to the unit: ACTIVE booms with vertical folding, INTENSIVE booms with simplified manual spacing and hydraulic telescopic EXTENSIVE booms with proportional spacing.
| Chassis | – One-piece chassis protected by U.H.R. polyester paint |
| Ventilations |
– Polyethylene ventilation cage with integrated air distributor. – Hydraulic drive system SPEEDAIR SUPAIR |
| Pump |
– Piston diaphragm pump (20 bar 60l/min), option (20 bar 105l/min). – Hydraulic drive system. – The tractor must be fitted with a flow divider to adjust the pump speed. |
| Operation |
– Valves grouped together on Berlogic (remote) with position indicators. – 1 tank rinsing kit |
| Regulation | – Manual pressure adjustment |
| Booms |

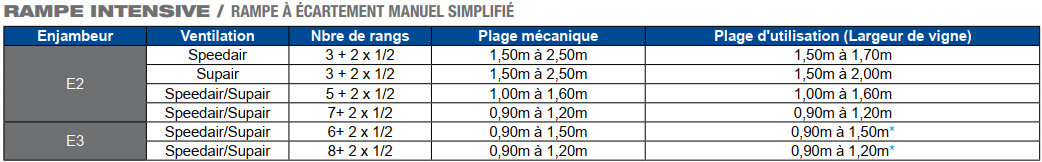

Rampes ACTIVE (vertical folding) :  Rampes INTENSIVE (simplified manual spacing) :  Rampes EXTENSIVE (proportional gap hydraulics) :
|
| Equipements |
– CG EXPERT : Face to face pneumatic from above – AB MOST : Face by face pneumatic in the line spacing – AIR DRIVE : Face by face jet carried between the lines |
The COMPACT SPEEDAIR and SUPAIR spray unit is designed to adapt to the different straddle tractors used in narrow vines (from 0.90m to 2.00m)
Work in progress…
Accessibility to key parts is made easy with the all-in-one fan unit
Work in progress…
The COMPACT SPEEDAIR and SUPAIR spray unit meets the most precise spraying quality needs
Work in progress…
Operators can count on working comfort thanks to on-board technologies: EC-Tronic unit and E-pilot joystick, ACS, PassTronic 2.0, etc.
Work in progress…
